Visualizing geospatial data I

Lecture 13

Dr. Mine Çetinkaya-Rundel

Duke University
STA 313 - Spring 2024

Warm up

Announcements

• Reading Quiz 4 due Tuesday after Spring Break
• Review Project 2 instructions before leaving for Spring Break and think about things you’d like to work on and let me know any team preferences (by Friday of this week)
• No class on Thursday, additional office hours by Eli during class time in Old Chem 203
• HW 3 - due Thursday at 5 pm.
  • Will push fix for data error later this afternoon. You’ll need to pull before you can push again

Setup

# load packages
library(tidyverse)
library(mapproj)
library(sf)
library(geofacet)

# set theme for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 16))

# set figure parameters for knitr
knitr::opts_chunk$set(
  fig.width = 7, # 7" width
  fig.asp = 0.618, # the golden ratio
  fig.retina = 3, # dpi multiplier for displaying HTML output on retina
  fig.align = "center", # center align figures
  dpi = 300 # higher dpi, sharper image
)

Projections

Visualizing geographic areas

Without any projection, on the cartesian coordinate system

world_map <- ggplot(map_data("world"), aes(x = long, y = lat, group = group)) +
  geom_polygon(fill = "white", color = "#3c3b6e", linewidth = 0.3) +
  labs(x = NULL, y = NULL)

world_map

Mercator projection

Meridians are equally spaced and vertical, parallels are horizontal lines whose spacing increases the further we move away from the equator

world_map +
  coord_map(projection = "mercator")

Mercator projection

without the weird straight lines through the earth!

world_map +
  coord_map(
    projection = "mercator",
    xlim = c(-180, 180)
    )

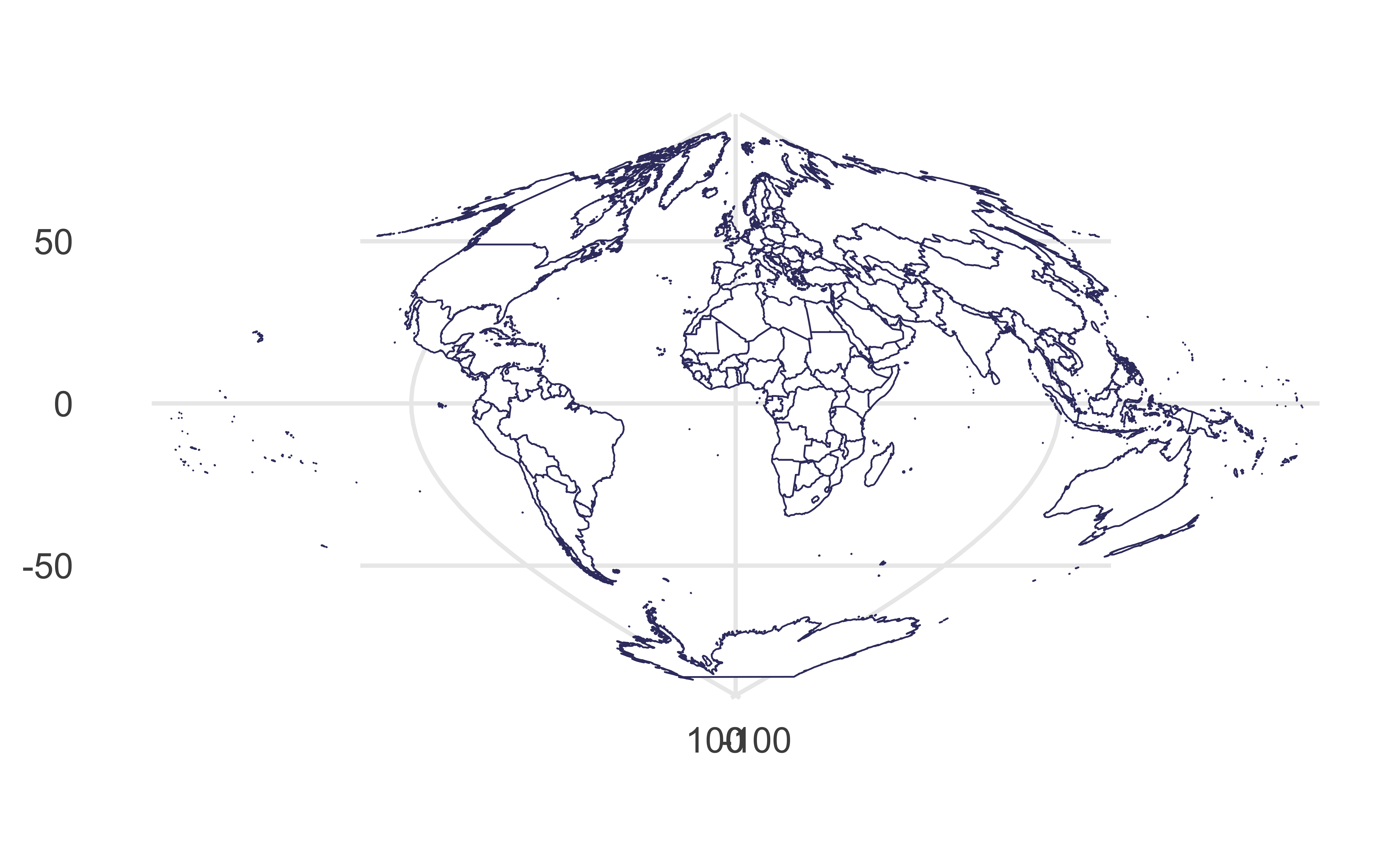

Sinusoidal projection

Parallels are equally spaced

world_map +
  coord_map(projection = "sinusoidal", xlim = c(-180, 180))

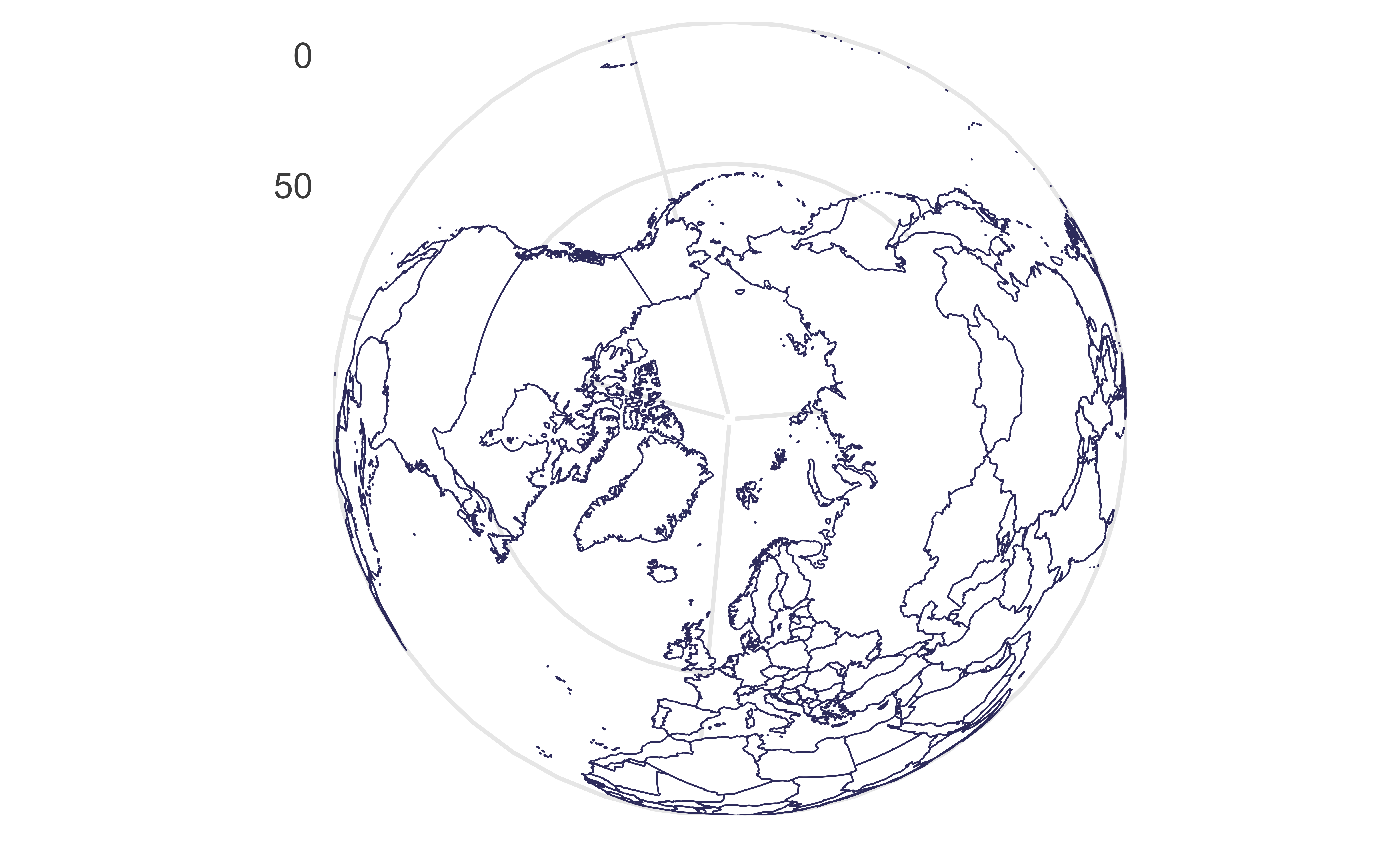

Orthographic projection

Viewed from infinity

world_map +
  coord_map(projection = "orthographic")

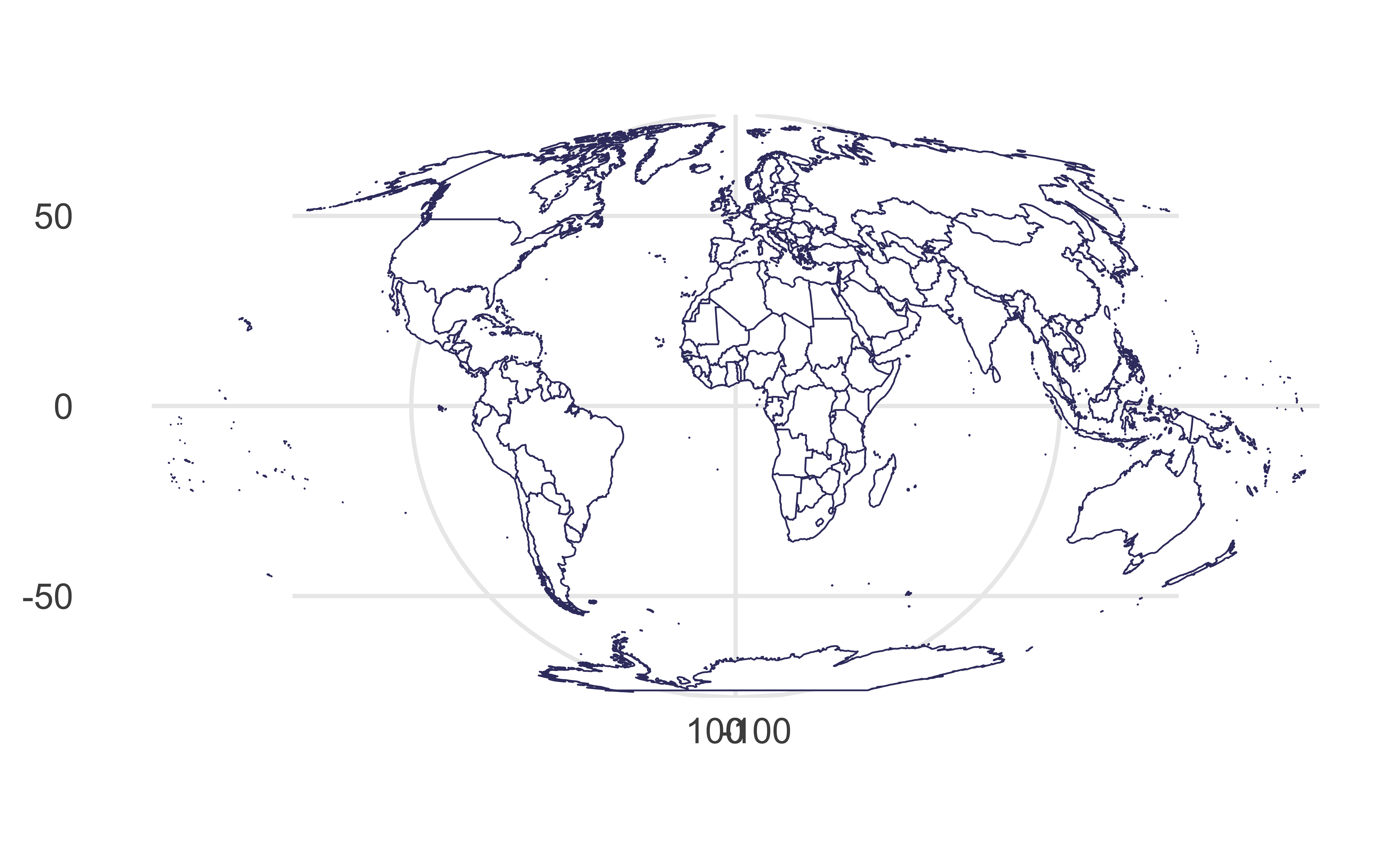

Mollweide projection

Equator is represented as a straight horizontal line perpendicular to a central meridian that is one-half the equator’s length, trades accuracy of angle and shape for accuracy of proportions in area

world_map +
  coord_map(projection = "mollweide", xlim = c(-180, 180))

Visualizing distances

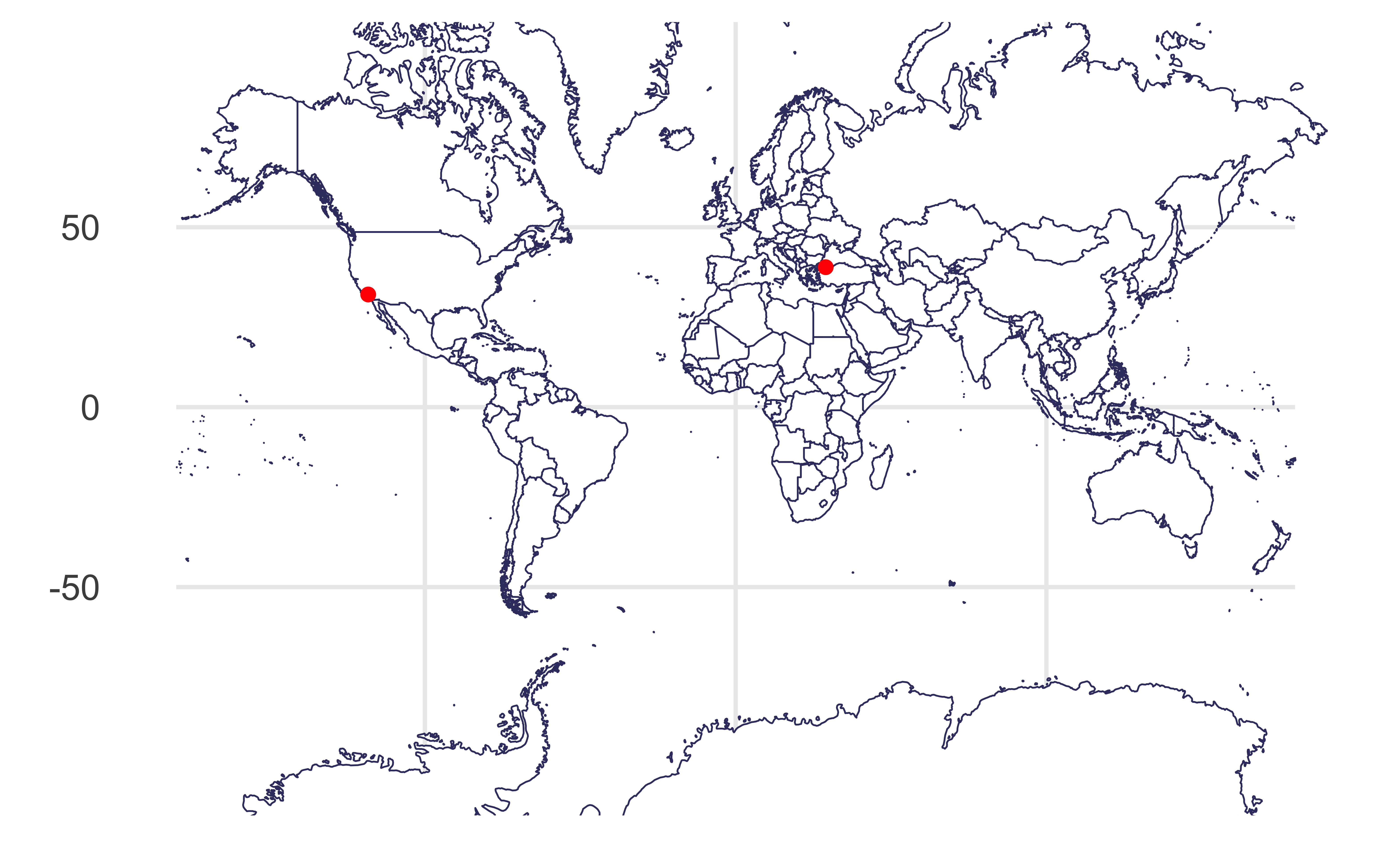

Draw a line between Istanbul and Los Angeles.

cities <- tribble(
  ~city,         ~long,    ~lat,
  "istanbul",    28.9784,  41.0082,
  "los angeles", -118.243, 34.0522,
)

Visualizing distances

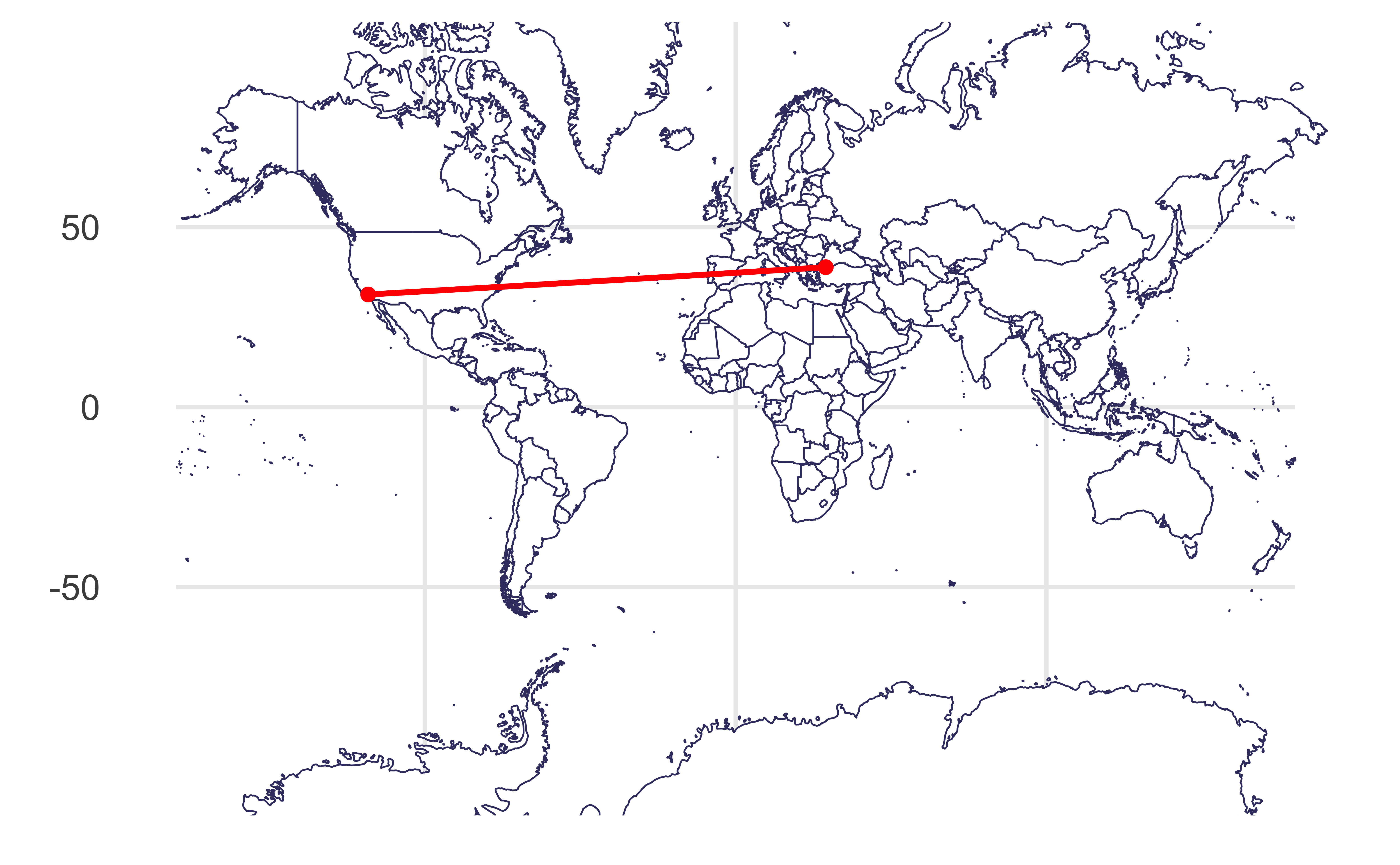

As if the earth is flat:

Visualizing distances

Based on a spherical model of the earth:

Intermediate points on the great circle

cities <- tribble(
  ~city,         ~long,    ~lat,
  "istanbul",    28.9784,  41.0082,
  "los angeles", -118.243, 34.0522,
)

gc <- geosphere::gcIntermediate(
  p1 = cities |> filter(city == "istanbul")    |> select(-city),
  p2 = cities |> filter(city == "los angeles") |> select(-city),
  n = 100,
  addStartEnd = TRUE
  ) |>
  as_tibble()

Intermediate points on the great circle

gc

# A tibble: 102 × 2
     lon   lat
   <dbl> <dbl>
 1  29.0  41.0
 2  28.4  41.9
 3  27.8  42.8
 4  27.1  43.6
 5  26.5  44.5
 6  25.8  45.3
 7  25.1  46.2
 8  24.4  47.0
 9  23.7  47.9
10  22.9  48.7
# ℹ 92 more rows

Plotting both distances

world_map +
  geom_point(
    data = cities, aes(x = long, y = lat, group = NULL),
    size = 2, color = "red"
  ) +
  geom_line(
    data = cities, aes(x = long, y = lat, group = NULL),
    linewidth = 1, color = "red"
  ) +
  geom_line(
    data = gc, aes(x = lon, y = lat, group = NULL),
    linewidth = 1, color = "red", linetype = "dashed"
  ) +
  coord_map(projection = "mercator", xlim = c(-180, 180))

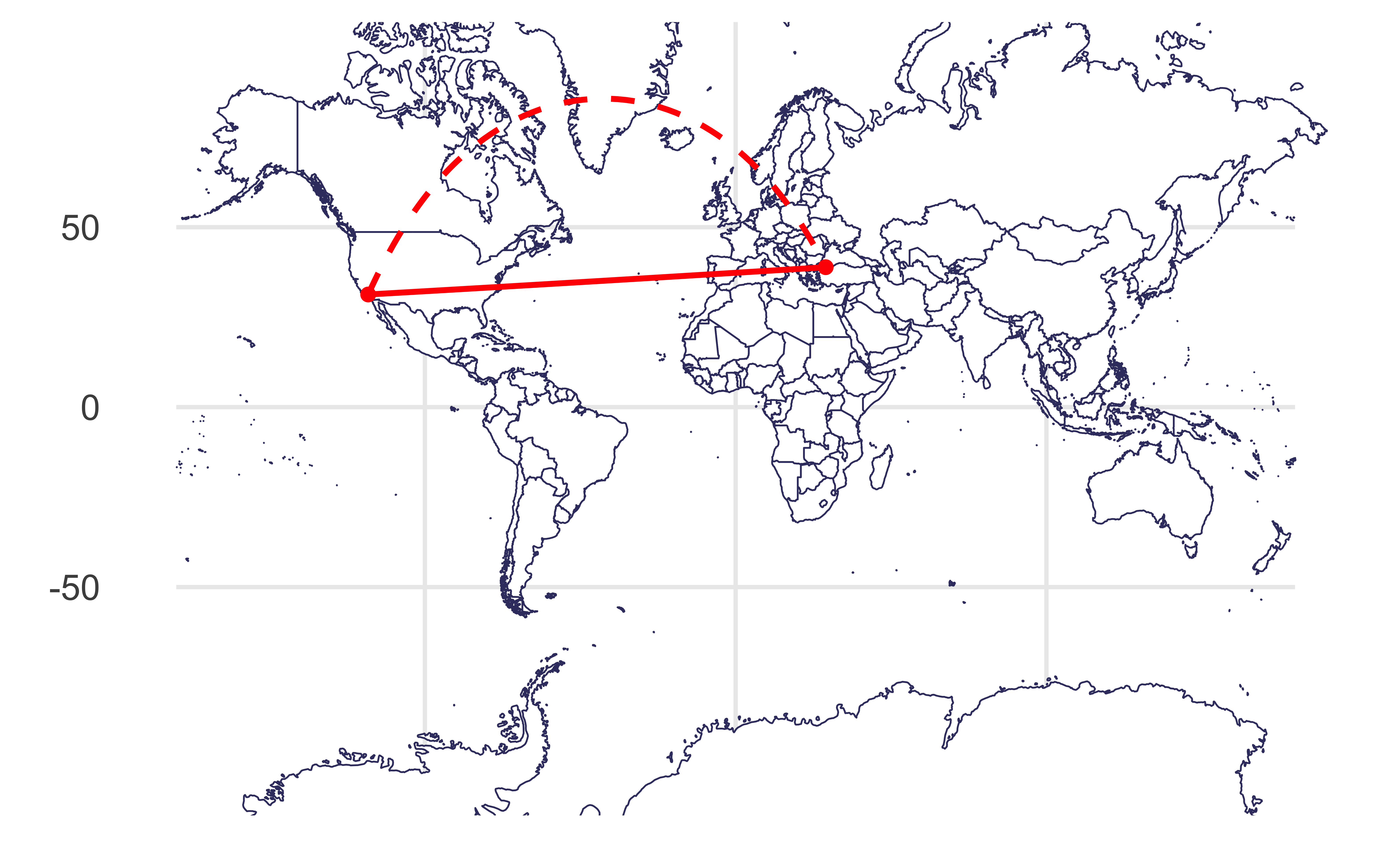

Plotting both distances

Another distance between two points

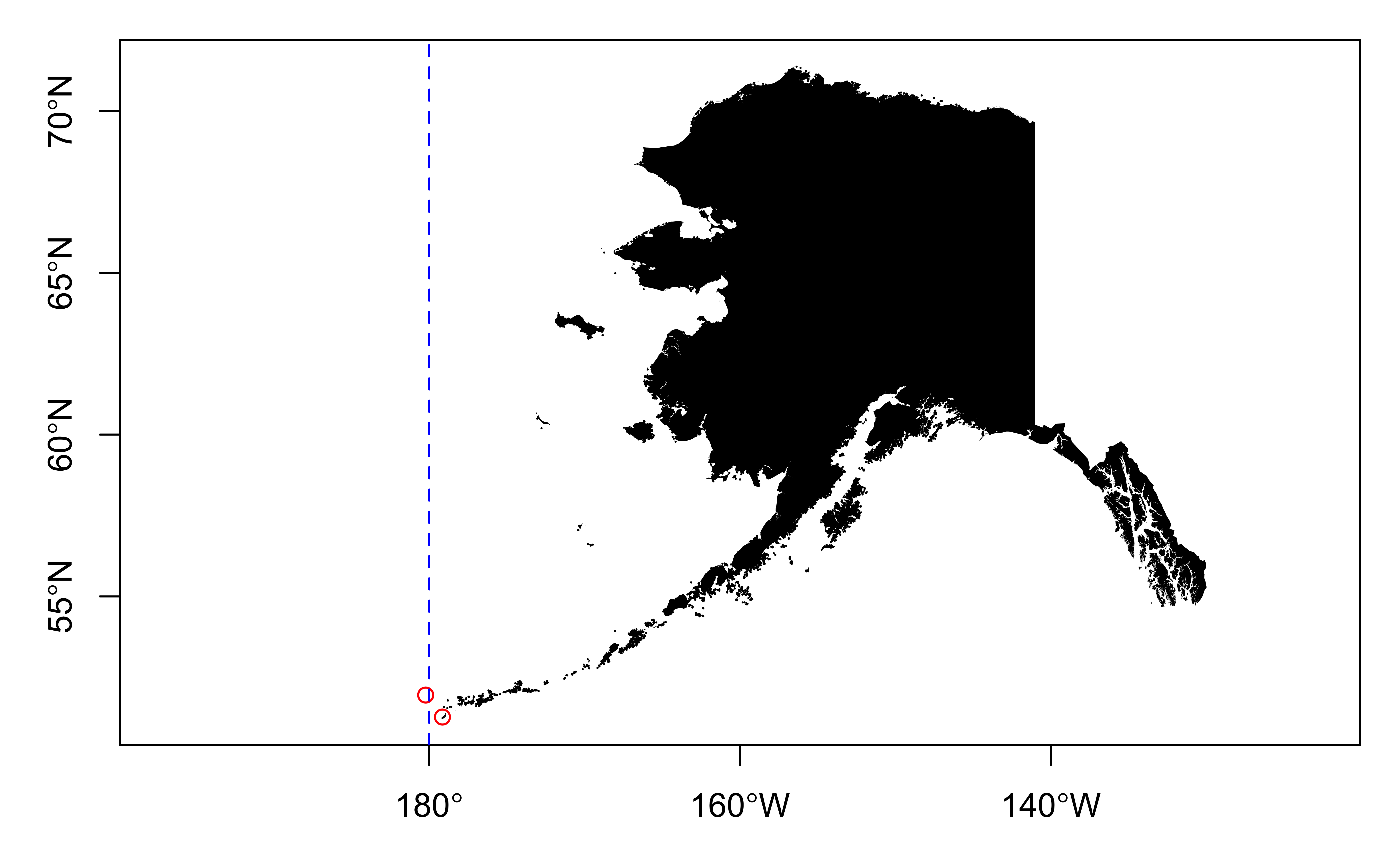

How long does it take to fly from the Western most point in the US to the Eastern most point? Guess.

Dateline

Geospatial data in the real world:
Freedom index

Freedom index

• Since 1973, Freedom House has assessed the condition of political rights and civil liberties around the world.

• It is used on a regular basis by policymakers, journalists, academics, activists, and many others.

Bias warning

“Freedom Index” from any source have potential bias and is prone to miscalculations. While the index appears to cover many social issues including freedom of religion, expression, etc. this data (like any data) should be approached with skepticism. Quantifying complex issues like these is difficult and the process can oversimplify difficult to record/measure political nuances.

Source: https://freedomhouse.org/report/freedom-world

Data

freedom <- read_csv("data/freedom-2022.csv", na = c("", "-")) |>
  drop_na()

freedom

# A tibble: 195 × 4
   country                pr    cl status
   <chr>               <dbl> <dbl> <chr>
 1 Afghanistan             7     7 NF
 2 Albania                 3     3 PF
 3 Algeria                 6     5 NF
 4 Andorra                 1     1 F
 5 Angola                  6     5 NF
 6 Antigua and Barbuda     2     2 F
 7 Argentina               2     2 F
 8 Armenia                 4     4 PF
 9 Australia               1     1 F
10 Austria                 1     1 F
# ℹ 185 more rows

• pr: Political rights rating
• cl: Civil liberties rating
• status: The average of each pair of ratings on political rights and civil liberties determines the overall status of F (Free, 1.0 - 2.5), PF (Partly Free, 3.0 - 5.0), or NF (Not Free, 5.5 - 7.0)

Improve

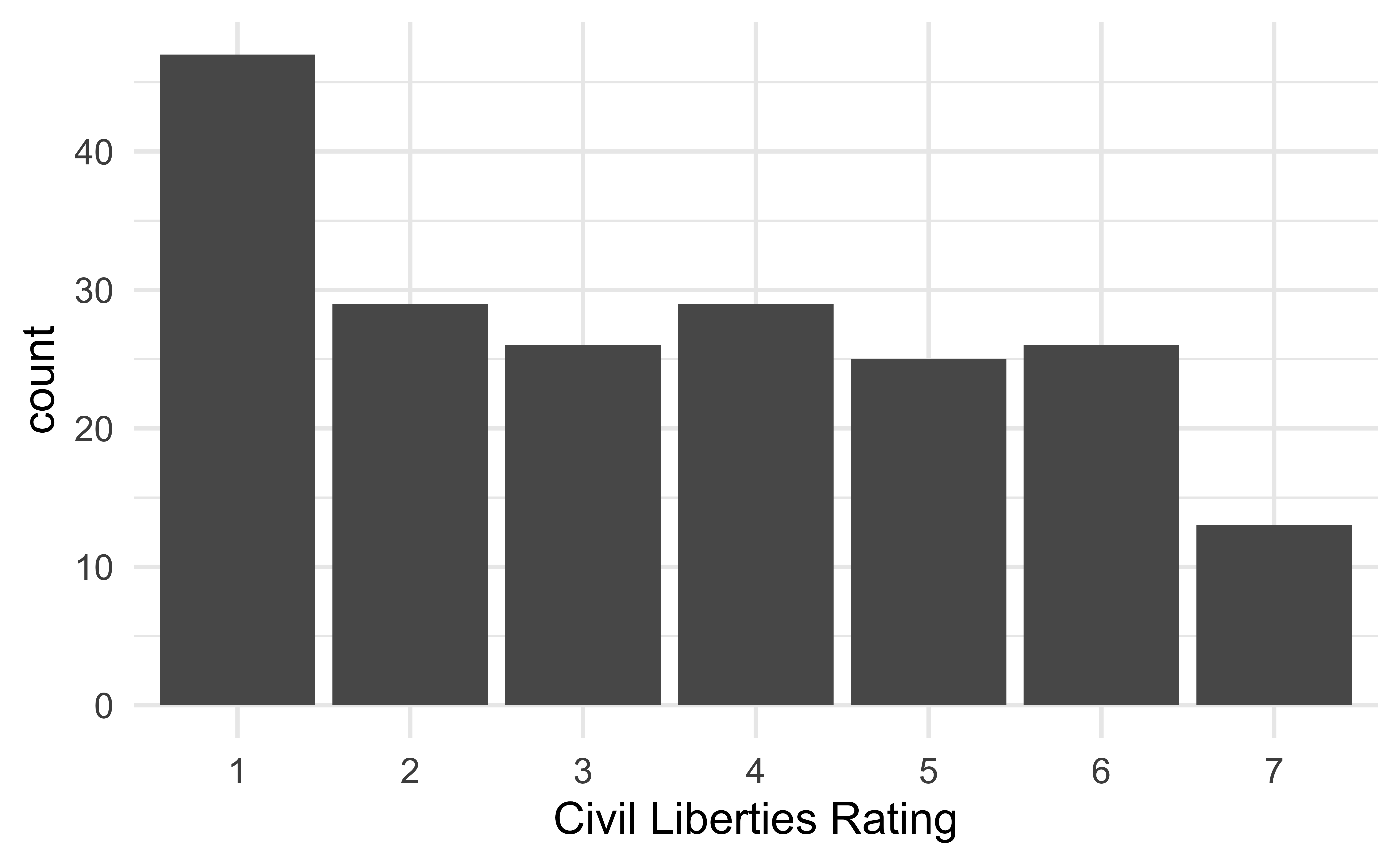

The following visualization shows the distribution civil liberties ratings (1 - greatest degree of freedom to 7 - smallest degree of freedom). This is, undoubtedly, not the best visualization we can make of these data. How can we improve it?

Mapping the freedom data

• Obtain country boundaries and store as a data frame
• Join the freedom and country boundaries data frames
• Plot the country boundaries, and fill by freedom scores

map_data()

The map_data() function easily turns data from the maps package in to a data frame suitable for plotting with ggplot2:

world_map <- map_data("world") |> as_tibble()
world_map

# A tibble: 99,338 × 6
    long   lat group order region subregion
   <dbl> <dbl> <dbl> <int> <chr>  <chr>
 1 -69.9  12.5     1     1 Aruba  <NA>
 2 -69.9  12.4     1     2 Aruba  <NA>
 3 -69.9  12.4     1     3 Aruba  <NA>
 4 -70.0  12.5     1     4 Aruba  <NA>
 5 -70.1  12.5     1     5 Aruba  <NA>
 6 -70.1  12.6     1     6 Aruba  <NA>
 7 -70.0  12.6     1     7 Aruba  <NA>
 8 -70.0  12.6     1     8 Aruba  <NA>
 9 -69.9  12.5     1     9 Aruba  <NA>
10 -69.9  12.5     1    10 Aruba  <NA>
# ℹ 99,328 more rows

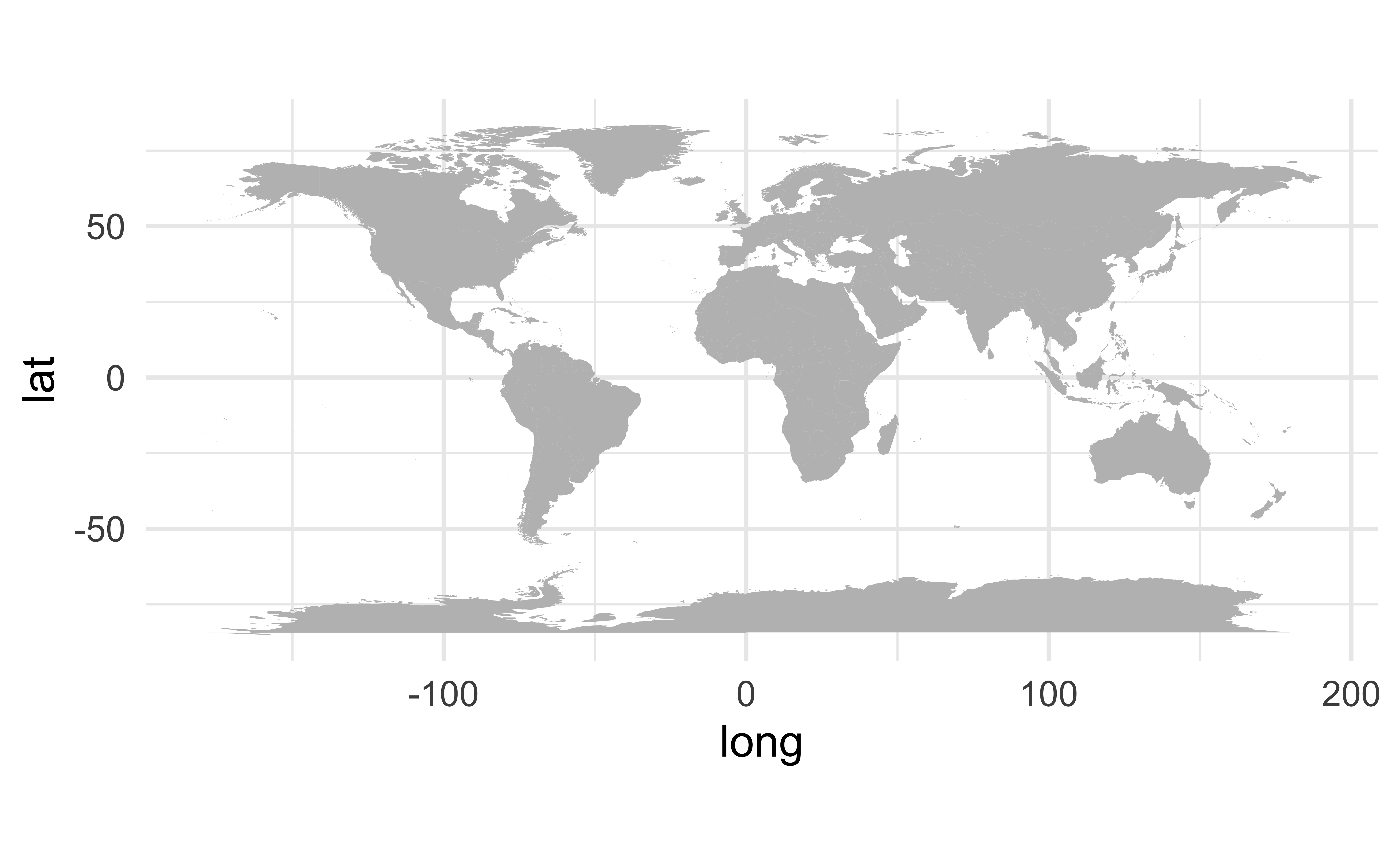

Mapping the world

ggplot(world_map, aes(x = long, y = lat, group = group)) +
  geom_polygon(fill = "gray") +
  coord_quickmap()

Freedom and world map

freedom |> select(country)

# A tibble: 195 × 1
   country
   <chr>
 1 Afghanistan
 2 Albania
 3 Algeria
 4 Andorra
 5 Angola
 6 Antigua and Barbuda
 7 Argentina
 8 Armenia
 9 Australia
10 Austria
# ℹ 185 more rows

world_map |> select(region)

# A tibble: 99,338 × 1
   region
   <chr>
 1 Aruba
 2 Aruba
 3 Aruba
 4 Aruba
 5 Aruba
 6 Aruba
 7 Aruba
 8 Aruba
 9 Aruba
10 Aruba
# ℹ 99,328 more rows

Join freedom and world map

freedom_map <- freedom |>
  left_join(world_map, by = join_by(country == region))

glimpse(freedom_map)

Rows: 82,198
Columns: 9
$ country   <chr> "Afghanistan", "Afghanistan", "Afghanistan", "Afghanistan", …
$ pr        <dbl> 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, …
$ cl        <dbl> 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, …
$ status    <chr> "NF", "NF", "NF", "NF", "NF", "NF", "NF", "NF", "NF", "NF", …
$ long      <dbl> 74.89131, 74.84023, 74.76738, 74.73896, 74.72666, 74.66895, …
$ lat       <dbl> 37.23164, 37.22505, 37.24917, 37.28564, 37.29072, 37.26670, …
$ group     <dbl> 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, …
$ order     <int> 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, …
$ subregion <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, …

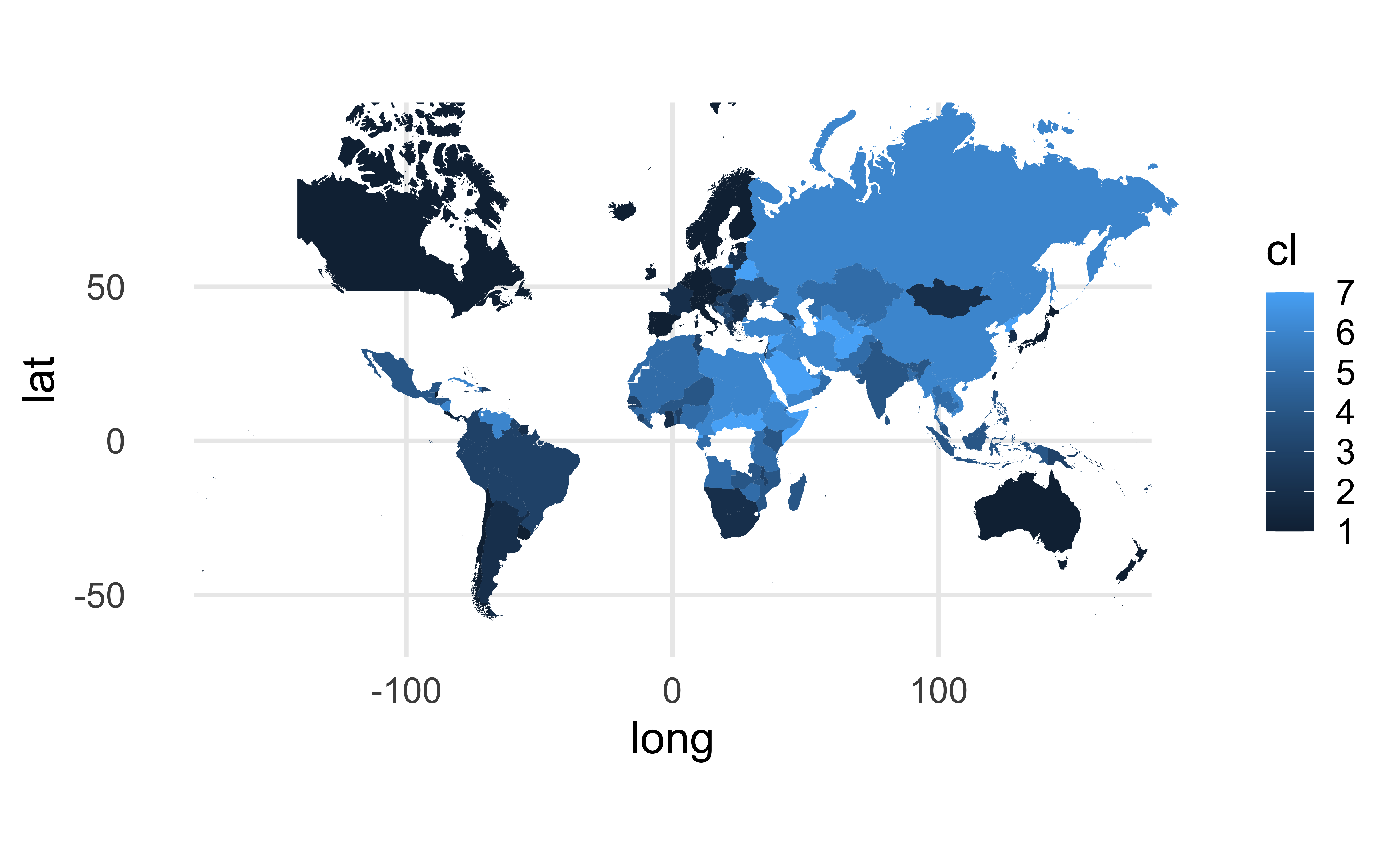

Mapping freedom

What is missing/misleading about the following map?

ggplot(freedom_map, mapping = aes(x = long, y = lat, group = group)) +
  geom_polygon(aes(fill = cl)) +
  coord_map(projection = "mercator", xlim = c(-180, 180))

Missing countries

freedom |>
  anti_join(world_map, by = c("country" = "region")) |>
  select(country) |>
  print(n = 14)

# A tibble: 14 × 1
   country
   <chr>
 1 Antigua and Barbuda
 2 Cabo Verde
 3 Congo (Brazzaville)
 4 Congo (Kinshasa)
 5 Cote d'Ivoire
 6 Eswatini
 7 St. Kitts and Nevis
 8 St. Lucia
 9 St. Vincent and the Grenadines
10 The Gambia
11 Trinidad and Tobago
12 Tuvalu
13 United Kingdom
14 United States

Data cleanup - freedom

freedom_updated <- freedom |>
  mutate(country = case_when(
    country == "Cabo Verde" ~ "Cape Verde",
    country == "Congo (Brazzaville)" ~ "Republic of Congo",
    country == "Congo (Kinshasa)" ~ "Democratic Republic of the Congo",
    country == "Cote d'Ivoire" ~ "Ivory Coast",
    country == "St. Lucia" ~ "Saint Lucia",
    country == "The Gambia" ~ "Gambia",
    country == "United Kingdom" ~ "UK",
    country == "United States" ~ "USA",
    .default = country
    )
  )

Data cleanup - world_map

world_map_updated <- world_map |>
  mutate(region = case_when(
    region == "Antigua" ~ "Antigua and Barbuda",
    region == "Barbuda" ~ "Antigua and Barbuda",
    region == "Saint Kitts" ~ "St. Kitts and Nevis",
    region == "Nevis" ~ "St. Kitts and Nevis",
    region == "Saint Vincent" ~ "St. Vincent and the Grenadines",
    region == "Grenadines" ~ "St. Vincent and the Grenadines",
    region == "Trinidad" ~ "Trinidad and Tobago",
    region == "Tobago" ~ "Trinidad and Tobago",
    region == "Swaziland" ~ "Eswatini",
    .default = region
    )
  )

Check again

freedom_updated |>
  anti_join(world_map_updated, by = join_by(country == region)) |>
  select(country)

# A tibble: 1 × 1
  country
  <chr>
1 Tuvalu

Tuvalu, formerly known as the Ellice Islands, is an island country and microstate in the Polynesian subregion of Oceania in the Pacific Ocean. Its islands are situated about midway between Hawaii and Australia. Tuvalu is composed of three reef islands and six atolls.

Source: https://en.wikipedia.org/wiki/Tuvalu

Let’s map!

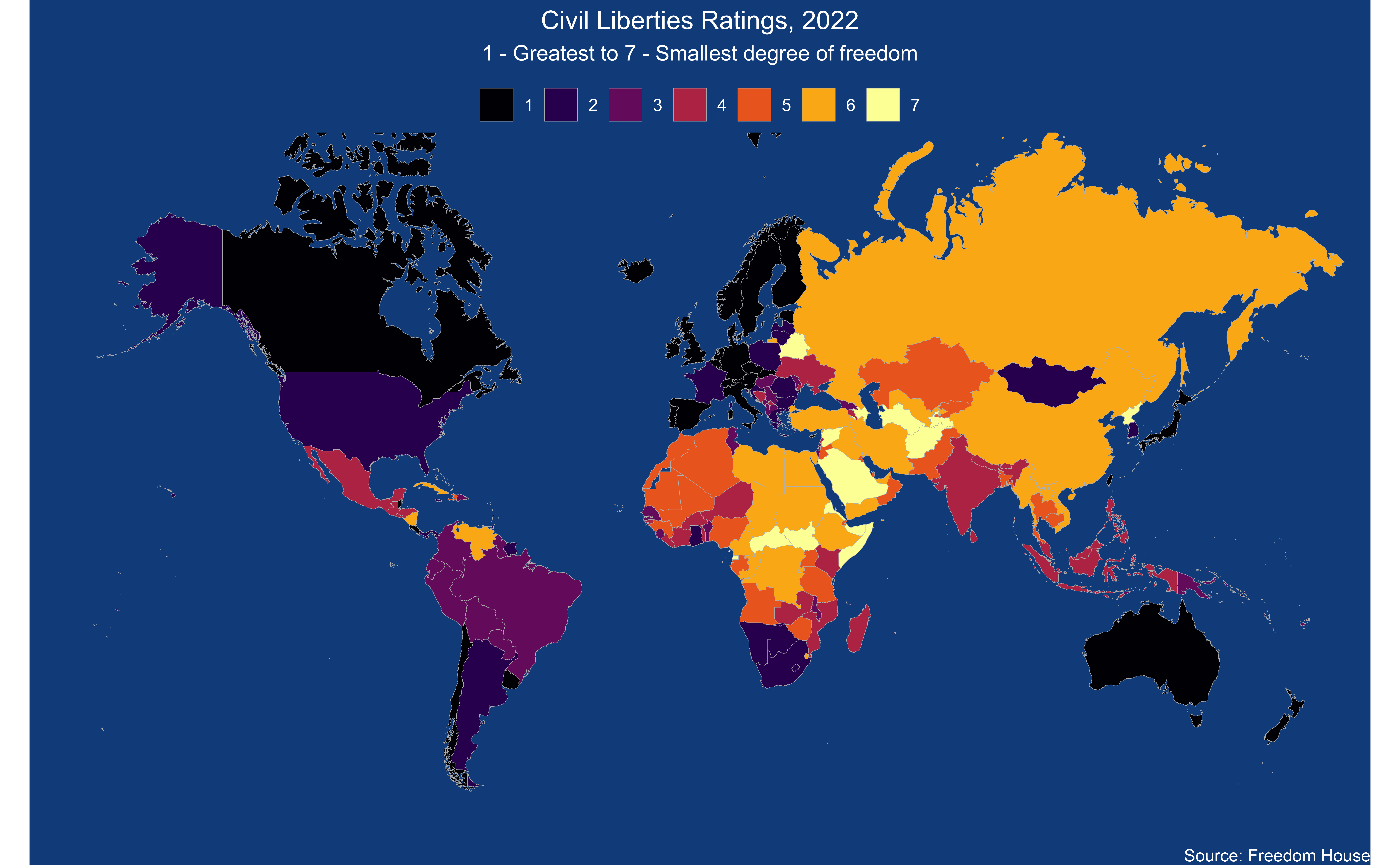

Recreate the following visualization in ae-09.

Highlights from livecoding

• When working through non-matching unique identifiers in a join, you might need to clean the data in both data frames being merged, depending on the context

• Two ways to surface polygons with NAs:

  • left_join() map to data, layering with map at the bottom, data on top
  • left_join() data to map, set na.value in scale_fill_*() to desired color

• Use na.value = "red" (or some other color that will stand out) to easily spot polygons with NAs

Geofaceting

Daily US vaccine data by state

us_state_vaccinations <- read_csv(here::here("data/us_state_vaccinations.csv")) |>
  mutate(date = mdy(date)) |>
  filter(year(date) == 2021)

us_state_vaccinations

# A tibble: 22,936 × 16
   date       location total_vaccinations total_distributed people_vaccinated
   <date>     <chr>                 <dbl>             <dbl>             <dbl>
 1 2021-01-12 Alabama               78134            377025             70861
 2 2021-01-13 Alabama               84040            378975             74792
 3 2021-01-14 Alabama               92300            435350             80480
 4 2021-01-15 Alabama              100567            444650             86956
 5 2021-01-16 Alabama                  NA                NA                NA
 6 2021-01-17 Alabama                  NA                NA                NA
 7 2021-01-18 Alabama                  NA                NA                NA
 8 2021-01-19 Alabama              130795            444650            114319
 9 2021-01-20 Alabama              139200            483275            121113
10 2021-01-21 Alabama              165919            493125            144429
# ℹ 22,926 more rows
# ℹ 11 more variables: people_fully_vaccinated_per_hundred <dbl>,
#   total_vaccinations_per_hundred <dbl>, people_fully_vaccinated <dbl>,
#   people_vaccinated_per_hundred <dbl>, distributed_per_hundred <dbl>,
#   daily_vaccinations_raw <dbl>, daily_vaccinations <dbl>,
#   daily_vaccinations_per_million <dbl>, share_doses_used <dbl>,
#   total_boosters <dbl>, total_boosters_per_hundred <dbl>

Source: https://ourworldindata.org/us-states-vaccinations

Facet by location

ggplot(
  us_state_vaccinations,
  aes(x = date, y = people_fully_vaccinated_per_hundred)
) +
  geom_area() +
  facet_wrap(~location)

Facet by location

Warning: Removed 3279 rows containing non-finite outside the scale range
(`stat_align()`).

Data cleaning

us_state_vaccinations <- us_state_vaccinations |>
  mutate(location = if_else(location == "New York State", "New York", location)) |>
  filter(location %in% c(state.name, "District of Columbia"))

Geofacet by state

Using geofacet::facet_geo():

ggplot(us_state_vaccinations,
       aes(x = date, y = people_fully_vaccinated_per_hundred)) +
  geom_area() +
  facet_geo(~ location) +
  labs(
    x = NULL, y = NULL,
    title = "COVID-19 vaccination rate in the US",
    subtitle = "Daily number of people fully vaccinated in 2021, per hundred",
    caption = "Source: Our World in Data"
  )

Geofacet by state

Geofacet by state, with improvements

ggplot(us_state_vaccinations, aes(x = date, y = people_fully_vaccinated_per_hundred, group = location)) +
  geom_area() +
  facet_geo(~location) +
  scale_y_continuous(
    limits = c(0, 100),
    breaks = c(0, 50, 100),
    minor_breaks = c(25, 75)
    ) +
  scale_x_date(breaks = c(ymd("2021-01-01", "2021-07-01", "2021-12-31")), date_labels = "%b") +
  labs(
    x = NULL, y = NULL,
    title = "COVID-19 vaccination rate in the US",
    subtitle = "Daily number of people fully vaccinated in 2021, per hundred",
    caption = "Source: Our World in Data"
  ) +
  theme(
    strip.text.x = element_text(size = 7),
    axis.text = element_text(size = 8),
    plot.title.position = "plot"
  )

Geofacet by state, with improvements

Bring in 2020 Presidential election results

election_2020 <- read_csv(here::here("data/us-election-2020.csv"))

election_2020

# A tibble: 51 × 5
   state                electoal_votes biden trump win
   <chr>                         <dbl> <dbl> <dbl> <chr>
 1 Alabama                           9     0     9 Republican
 2 Alaska                            3     0     3 Republican
 3 Arizona                          11    11     0 Democrat
 4 Arkansas                          6     0     6 Republican
 5 California                       55    55     0 Democrat
 6 Colorado                          9     9     0 Democrat
 7 Connecticut                       7     7     0 Democrat
 8 Delaware                          3     3     0 Democrat
 9 District of Columbia              3     3     0 Democrat
10 Florida                          29     0    29 Republican
# ℹ 41 more rows

Geofacet by state + presidential election result

us_state_vaccinations |>
  left_join(election_2020, by = c("location" = "state")) |>
  ggplot(aes(x = date, y = people_fully_vaccinated_per_hundred)) +
  geom_area(aes(fill = win)) +
  facet_geo(~location) +
  scale_y_continuous(limits = c(0, 100), breaks = c(0, 50, 100), minor_breaks = c(25, 75)) +
  scale_x_date(breaks = c(ymd("2021-01-01", "2021-07-01", "2021-12-31")), date_labels = "%b") +
  scale_fill_manual(values = c("#2D69A1", "#BD3028")) +
  labs(
    x = NULL, y = NULL,
    title = "COVID-19 vaccination rate in the US",
    subtitle = "Daily number of people fully vaccinated in 2021, per hundred",
    caption = "Source: Our World in Data",
    fill = "2020 Presidential\nElection"
  ) +
  theme(
    strip.text.x = element_text(size = 7),
    axis.text = element_text(size = 8),
    plot.title.position = "plot",
    legend.position = c(0.93, 0.15),
    legend.text = element_text(size = 9),
    legend.title = element_text(size = 11),
    legend.background = element_rect(color = "gray", size = 0.5)
  )

Geofacet by state + presidential election result
